Working with Frames

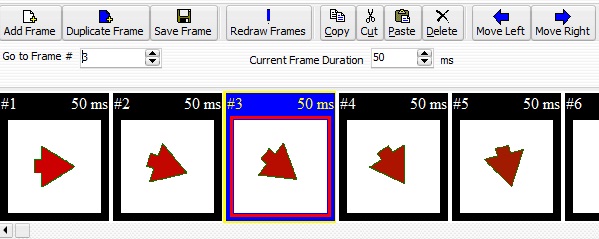

Work with frames occurs at the bottom of the program window:

The current frame is highlighted in red, the selected frames are in blue. The frame displays the frame number and duration in milliseconds (ms). 1000 ms = 1 second.

After entering numerical values, press the "Enter" key.

To go to a frame, use the "Go to Frame #" field.

To change the frame duration in ms, use the "Current Frame Duration" field.

To add an empty frame, click .

To duplicate the current frame, click .

To save the current frame as GIF, JPG, PNG or BMP, click and specify the file.

To redraw frames, click .

To select one frame, click the frame. To select several individual frames, click them while pressing the "Ctrl" key. To select a range, hold down the "Shift" key.

Selected frames can be copied to memory, pasted from memory, deleted, cut (copy and deleted), and moved left and right.

For copy, cut, paste and delete operations, you can right-click on frames and select an operation or press the corresponding keys on the keyboard:
