Working with Shapes

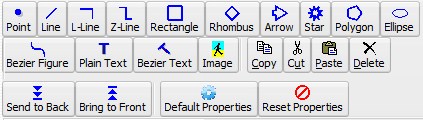

The buttons for working with shapes are on the "Editing" tab at the top:

To create a shape, click the corresponding button. When creating an shape, You need to select an image file. If You select a GIF file, the animation frame will correspond to the GIF frame.

The animation frame image is located on the "Editing" tab, under the buttons for working with shapes. The selection of shapes occurs on the frame image as follows:

• To select one shape, click it.
• To select multiple shapes:
  • Select the shapes with the mouse while holding down the "Shift" key.
  • Drag the mouse from the top left corner of the area with the selected shapes to the bottom right.

When selected, the shape has nodes in the form of squares associated with the coordinates.

Selected shapes and their nodes can be dragged with the mouse.

Selected shapes can be copied to memory, pasted from memory, deleted, cut (copied and deleted), and moved to the back and front.

When one shape is selected, its properties appear to the right of the frame image.

To set the properties of the shapes when creating them, click .

To set the initial values for the properties of the shapes when creating them, click .

For copy, cut, paste and delete operations, you can right-click in the frame image and select an operation or press the corresponding keys on the keyboard:
